Fingerprint Time Attendance System

  • 3
  • jquery image slider
  • 01

S-B100CB Features

  • 32bit RISC CPU
  • 3" B/W LCD Display
  • High Resolution Optical Fingerprint Scanner
  • Voice Guided Instruction
  • TCP/IP/ & USB Communication Mode
  • USB Data Backup Supported
  • Lock Control Supported
  • Online or Offline Data Transmission
  • CE & FCC Certification

How to use

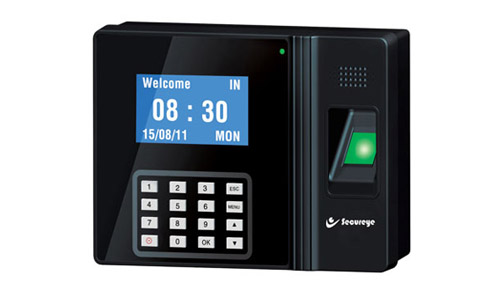

IP Based T&A Biometric Machine S-B100CB

How to add new biometric device in ONtime?

How to add new user in ONtime?

How to modify existing user information in ONtime?

How to download punch from biometric device?

Technical Specification
Display 3" B/W LCD
Fingerprint Scanner High Resolution Optical (≥ than 600dpi)
False Fingerprint Detection Embedded
Transaction Record 1,20,000 Impressions
Users 6000
Authentication Mode Fingerprint, Password, Proximity Card
Instruction Voice Guided
Communication Mode TCP/IP/ & USB
FAR & FRR 0.0001% & 0.01% max
Speed Mode IEEE 802.2, Ethernet TCP/IP
Authentication Angle 360°
Data Backup Support USB
Authentication OSD Person Name and ID display
Synchronization Automatic Server to Device Synchronized
Data Transmission Online or Offline
Lock Control Supported
Proximity Card Reader Built-in
Optional Features Web Server, WiFi, 3G, Antipass, Mifare(Smart Card)/HID Card Reader
Temperature Humidity -10°C ~ 50°C lower then 90% RH
Source of Power DC 9V
Power Backup Battery (5 ~ 8 hrs)
Certification CE & FCC
